Product Details:

Place of Origin: China
Brand Name: Lief Technology
Model Number: W-11-90

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Packaging Details: 150 pcs/ box, carton box packing, maximum 20 kgs per box
Delivery Time: 8-14 working days
Payment Terms: T/T, L/C
Get Best Price Contact Now

Detail Information

Material: Steel Color: Black, Zinc, Nickel, Chrome
Shape: Equal, 90 Degree Thickness: 2.5mm
Weight: 0.1kg/pcs Application: Industrial
Tolerance: +_1% Techics: Stamping
Size: For 28mm Dia Pipe
Highlight:

90 Degree Pipe Joint 2.5mm

,

Anodized 90 Degree Pipe Joint

,

90 degree elbow joint Lean Tube

Product Description

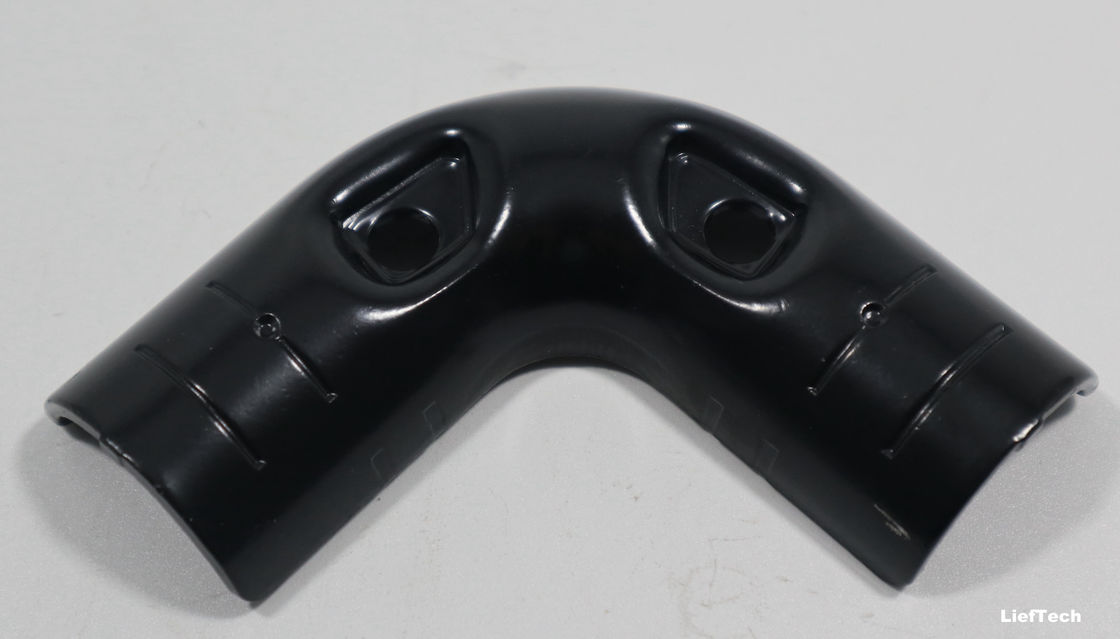

DIY Assembly 2.5mm thickness pipe clamps 90 degree metal joint anodized for lean tube system

Product introduction

90 degree metal joint need two pair of M6 * 25 bolts to complete the installation process. The equipotential line is stamped on both sides of the product to facilitate the user to measure the connection depth between the joint and the pipe during use. The joint is stamped from 2.5mm thick raw material. The stability of the structure can be guaranteed. After the joint is grinded, the burr on the joint surface can be greatly reduced or even completely cleared, effectively reducing the risk of injury to workers in the workplace. And the surface treatment of the joint adopts electroplating, which can effectively prevent its rusting and prolong the service life of the joint.

Features



DIY Assembly 2.5mm thickness pipe clamps 90 degree metal joint anodized for lean tube system1. Two equipotential lines on both sides of the product, so the installation position of the tube can be known when using. Auxiliary user installation.

2.The thickness of the product is up to 2.5, 25% thicker than most products, with stronger performance and higher bearing capacity.

3. Holes are reserved on the surface of the product, and self-tapping screws can be inserted later to better fix the pipe.

4. Products can be customized with logos and marked with models according to different needs of customers.

Application

Lief Technology's 90 degree metal joint is used to form a 90 ° structure with two lean tubes, two set of M6 bolts is required. The groove on the joint surface can increase the friction between the joint and the pipe, making it more stable. Moreover , the connection between the connector and the lean pipe conforms to human mechanics. 90 degree metal joints are often used in Handle and guardrail of turnover vehicles. It is the commonly used joint in the lean pipe system.
