High strength Lean Tube Connector square right angle t shaped joint
Product Details:
| Place of Origin: | China |
| Brand Name: | Lief Technology |
| Certification: | ISO9001 |
| Model Number: | W-19 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300pcs |
|---|---|
| Packaging Details: | Carton Box |
| Delivery Time: | 7 days |
| Supply Ability: | 10000 pcs Per Day |
|
Detail Information |
|||
| Features: | High Durability, Corrorection Resistance, Etc., | Material: | Steel |
|---|---|---|---|
| Colour: | Black, Zinc, Nickel, Chrome | Size: | 28 Mm |
| Weight: | 0.085kg/pcs | Thickness: | 2.5mm |
| Technics: | Stamping | Tolerance: | ±1% |
| Shape: | Pipe | Application: | Manufacturer Workshop, Automobile, Electronic, Assembling, Logistic |
| Port: | Shenzhen | Selling Unit: | Pcs |
| OEM,ODM: | Allow | ||
| Highlight: | High Strength Lean Tube Connector,Lean Tube Connector Square,Right Angle T Shaped Joint |
||
Product Description

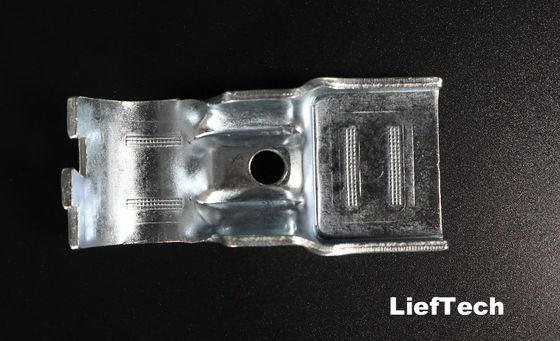

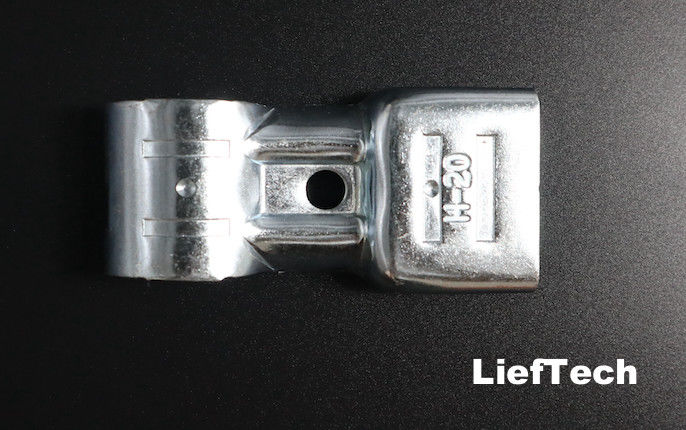

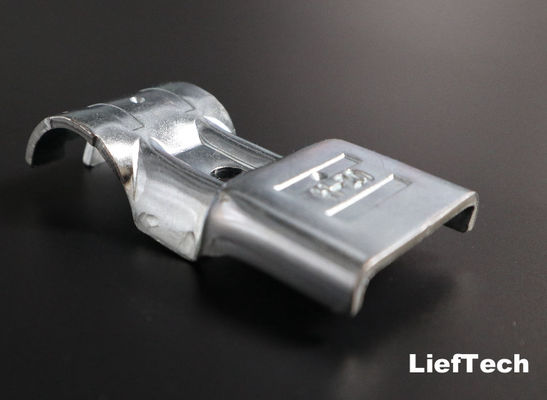

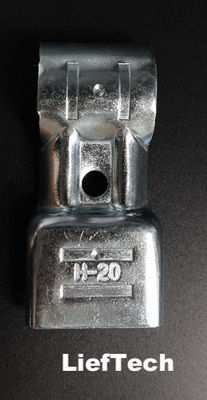

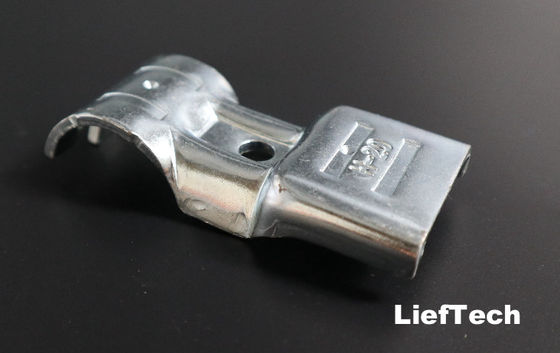

High strength T-shaped square right angle joint lean tube connector
Product introduction
The installation method of T shaped square 90 degree metal joint is somewhat similar to that of T shape metal joint(W-1). It only need one pair of M6 * 25 bolts to complete the lean pipe and square pipe. The surface of T shaped square 90 degree metal joint can be provided with holes to further drive self-tapping screws to strengthen the fixation of the pipe and the joint. The thickness of 2.5mm also ensures the high bearing capacity of the joint. The equipotential line is stamped on both sides of the product to facilitate the user to measure the connection depth between the joint and the pipe during use.
Features
1. Two equipotential lines on both sides of the product, so the installation position of the tube can be known when using. Auxiliary user installation.
2.The thickness of the product is up to 2.5, 25% thicker than most products, with stronger performance and higher bearing capacity.
3. Holes are reserved on the surface of the product, and self-tapping screws can be inserted later to better fix the pipe.
4. Products can be customized with logos and marked with models according to different needs of customers.
Application
T shaped square 90 degree metal joint W-19 requires two identical joints and a pair of m6 * 25 bolts to be assembled. The T-shaped square right angle joint is used to connect the lean pipe and the square pipe to form a T- shaped structure. It is suitable for the assembly of high strength composite shelves. The groove on the joint surface can increase the friction between the joint and the pipe, making it more stable. Moreover, the connection between the connector and the lean pipe conforms to human mechanics.
Structures
Production Equipment
As the Lean products manufacturer, LiefTech adopts the world's most advanced automatic modeling, stamping system and precision CNC cutting system. The machine has automatic / semi-automatic multi gear production mode and the precision can reach 0.1mm. With the help of these machines, LiefTech can also handle various customer needs with ease. At present, LiefTech products have been exported to more than 15 countries.
Our Warehouse
We have a complete production chain, from material processing to warehousing delivery, are completed independently. The warehouse also uses a large space. LiefTech has a warehouse of 4000 square meters to ensure the smooth circulation of products.Moisture absorption and heat insulation are used in the delivery area to ensure the quality of the goods shipped.
