Product Details:

Place of Origin: China
Brand Name: Lief Technology
Model Number: W-2

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Packaging Details: Carton Box
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 10000 pcs Per Day
Get Best Price Contact Now

Detail Information

Matrial: Steel Connection: Threaded/Welded
Corrosion Resistance: High/Medium/Low Cost: High/Medium/Low
Durability: High/Medium/Low Finish: Galvanized/Painted
Installation: Easy/Difficult Maintenance: Easy/Difficult
Material: Metal Pressure Rating: High/Medium/Low
Shape: Round/Rectangular Temperature Rating: High/Medium/Low
Type: Pipe Joints Weight: Light/Heavy
Size: For 28mm Pipe
Highlight:

90 Degree Metal Pipe Connectors

,

Metal Pipe Connectors Lean

,

Lean Pipe Corner Joint Metal

Product Description

90 degree external corner metal joint lean pipe system component



Short Description:

2.5mm thickness easy assembly anodized right angle outer screw connection metal joint for lean pipe system.

We are the manufacturer of metal joints. Our products are sold directly from factories. With low prices and large shipments, we are the best choice for dealers.




Product introduction

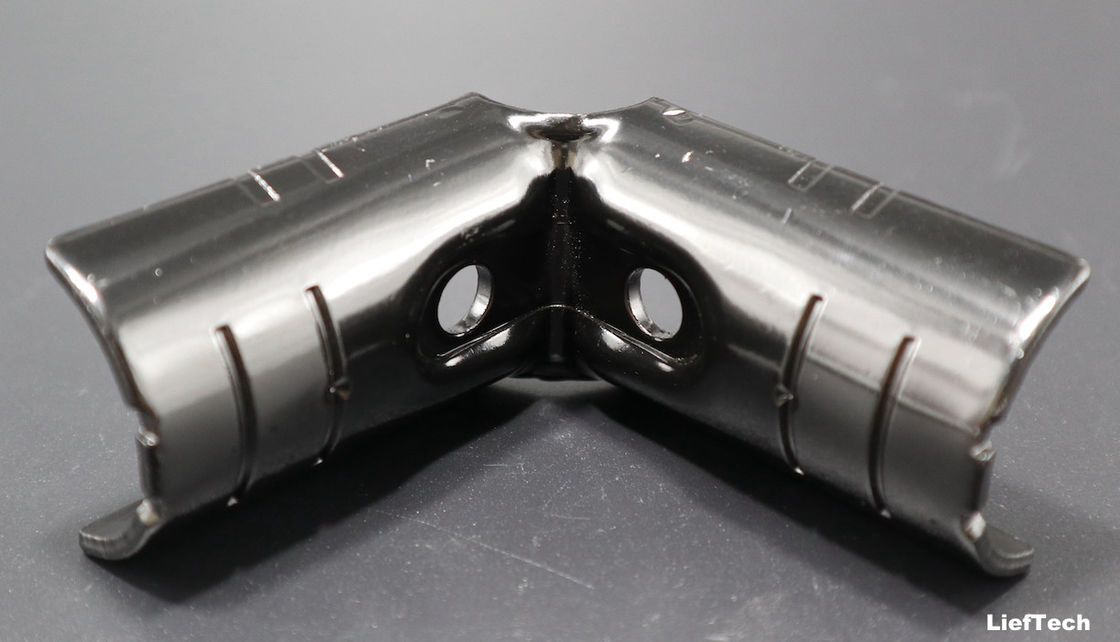

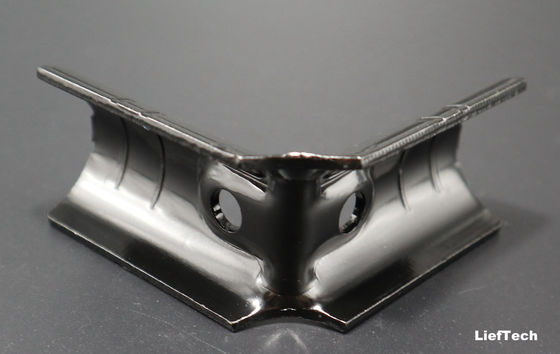

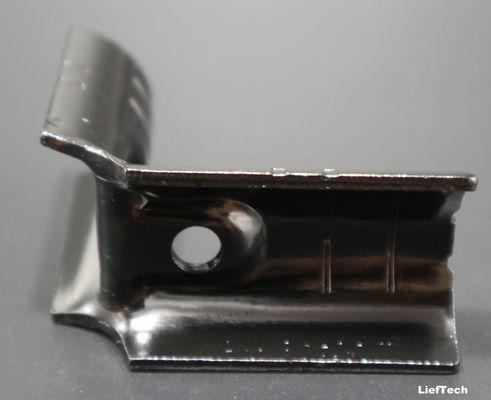

The thickness of 90 degree external conrner metal joint is 2.5mm, which can ensure that it has a strong bearing capacity. Screw holes are also reserved on the surface of the product to facilitate the user to drive screws for fixation. Tighten the pipe clamp to the pipe. After the joint is grinded, the burr on the joint surface can be greatly reduced or even completely cleared, effectively reducing the risk of injury to workers in the workplace. The equipotential line is stamped on both sides of the product to facilitate the user to measure the connection depth between the joint and the pipe during use. The surface treatment of the joint adopts electroplating, which can effectively prevent its rusting and prolong the service life of the joint.

Features



1. Two equipotential lines on both sides of the product, so the installation position of the tube can be known when using. Auxiliary user installation.

2.The thickness of the product is up to 2.5, 25% thicker than most products, with stronger performance and higher bearing capacity.

3. Holes are reserved on the surface of the product, and self-tapping screws can be inserted later to better fix the pipe.

4. Products can be customized with logos and marked with models according to different needs of customers.

Application



The use of right angle external corner joint is very simple. Only two pairs of M6 * 25 screw and nut are required to connect the three lean pipes. The connection may form a 90 degree structure at the edge of the tube. You can even build a workbench only use Combination of internal and external corner joints, T-type direct joints and lean pipes. Moreover, the connection between the connector and the lean pipe conforms to human mechanics. Only one M6 hexagonal wrench can complete the installation process. External corner joint is often used in various material racks and turnover vehicles. It is the most commonly used joint in the lean pipe system.



Structures

90 degree Metal Pipe Connectors lean pipe Corner Joint Metal 0

Production Equipment

As the Lean products manufacturer, LiefTech adopts the world's most advanced automatic modeling, stamping system and precision CNC cutting system. The machine has automatic / semi-automatic multi gear production mode and the precision can reach 0.1mm. With the help of these machines, LiefTech can also handle various customer needs with ease. At present, LiefTech products have been exported to more than 15 countries.

90 degree Metal Pipe Connectors lean pipe Corner Joint Metal 1

Our Warehouse

We have a complete production chain, from material processing to warehousing delivery, are completed independently. The warehouse also uses a large space. LiefTech has a warehouse of 4000 square meters to ensure the smooth circulation of products.Moisture absorption and heat insulation are used in the delivery area to ensure the quality of the goods shipped.



90 degree Metal Pipe Connectors lean pipe Corner Joint Metal 2
