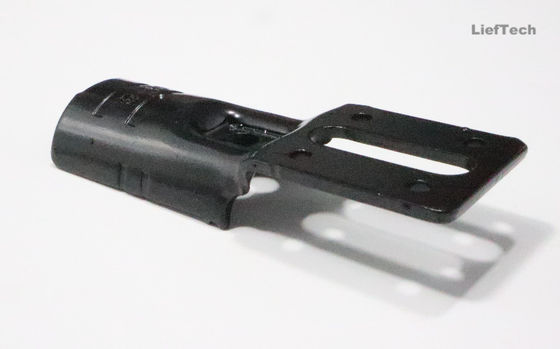

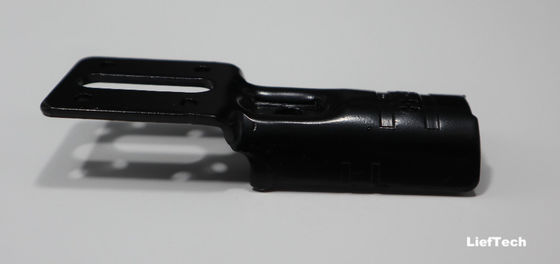

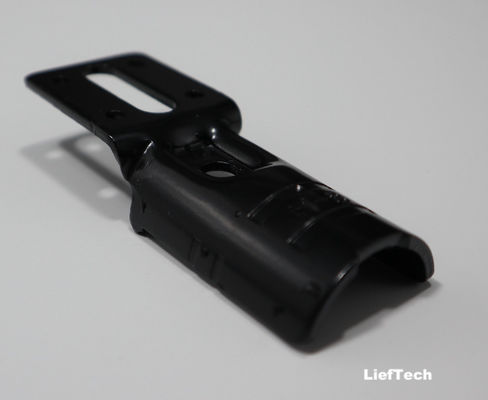

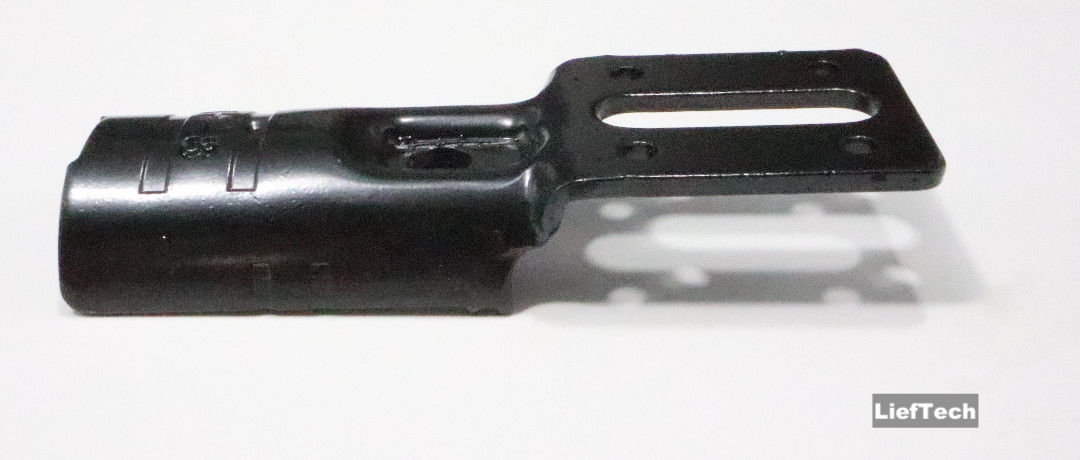

Screw Connection Metal Pipe Fittings Flat Vertical Joint 2.5 Thickness

Screw Connection Metal Pipe Fittings Flat Vertical Joint 2.5 Thickness

Product Details:

Place of Origin: China
Brand Name: Lief Technology
Certification: ISO9001
Model Number: W-18B

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: Carton Box
Delivery Time: 7 days
Supply Ability: 10000 pcs Per Day
Get Best Price Contact Now

Detail Information

Features: High Durability, Corrorection Resistance, Etc., Material: Steel
Colour: Black, Zinc, Nickel, Chrome Size: 28 Mm
Weight: 0.055kg/pcs Thickness: 2.5mm
Technics: Stamping Tolerance: ±1%
Shape: Pipe Application: Manufacturer Workshop, Automobile, Electronic, Assembling, Logistic
Selling Unit: Pcs OEM,ODM: Allow
Highlight:

Screw Connection Metal Pipe Fittings

,

Metal Pipe Fittings Vertical Joint

,

metal tube and fittings 2.5 Thickness

Product Description

Screw connection flat vertical metal joint lean tube system components

  Product introduction

The installation method of flat vertical metal joint is somewhat similar to that of right angle vertical metal joint. It only need one pair of M6 * 25 bolts to complete the installation process. The surface of flat vertical joint can be provided with holes to further drive self-tapping screws to strengthen the fixation of the pipe and the joint. The thickness of 2.5mm also ensures the high bearing capacity of the joint. After the joint is grinded, the burr on the joint surface can be greatly reduced or even completely cleared, effectively reducing the risk of injury to workers in the workplace. And the surface treatment of the joint adopts electroplating, which can effectively prevent its rusting and prolong the service life of the joint.

Features

1. Two equipotential lines on both sides of the product, so the installation position of the tube can be known when using. Auxiliary user installation.

2.The thickness of the product is up to 2.5, 25% thicker than most products, with stronger performance and higher bearing capacity.

3. Holes are reserved on the surface of the product, and self-tapping screws can be inserted later to better fix the pipe.

4. Products can be customized with logos and marked with models according to different needs of customers.

Application

Flat vertical metal joint W-18B require two identical joints and a pair of m6 * 25 bolts to be assembled. Screw holes are reserved on the outside of the connector to facilitate the connection between the connector and other accessories.The flat vertical metal joint can be combined with right angle vertical joint W-18A to form a fixed base of 90 degrees, which can be used to fix the edge of the workbench. The groove on the joint surface can increase the friction between the joint and the pipe, making it more stable. Moreover, the connection between the connector and the lean pipe conforms to human mechanics. This joint is required for the connection between the board and the lean pipe.
Screw Connection Metal Pipe Fittings Flat Vertical Joint 2.5 Thickness 0

Structures

Screw Connection Metal Pipe Fittings Flat Vertical Joint 2.5 Thickness 1



  Production Equipment

As the Lean products manufacturer, LiefTech adopts the world's most advanced automatic modeling, stamping system and precision CNC cutting system. The machine has automatic / semi-automatic multi gear production mode and the precision can reach 0.1mm. With the help of these machines, LiefTech can also handle various customer needs with ease. At present, LiefTech products have been exported to more than 15 countries.
Screw Connection Metal Pipe Fittings Flat Vertical Joint 2.5 Thickness 2

Our Warehouse

We have a complete production chain, from material processing to warehousing delivery, are completed independently. The warehouse also uses a large space. LiefTech has a warehouse of 4000 square meters to ensure the smooth circulation of products.Moisture absorption and heat insulation are used in the delivery area to ensure the quality of the goods shipped.

Screw Connection Metal Pipe Fittings Flat Vertical Joint 2.5 Thickness 3
